How does effective DC wiring benefit you?

True PV Safety. Integrated.

EBOS solutions

Wire harness with eBOS components

eBOS stands for Electrical Balance of the Systems. This comprises all the DC wiring components of the PV system between and except the modules and the inverter.

The eBOS solution ensures that the power generated by the modules is gathered and transferred efficiently, reliably and safely. To ensure that the DC wiring system meets the life expectancy of the PV plant, an impeccable product is merely one aspect of the solution.

Modular plug-and-play wiring system

A modular cabling concept allows for the highest flexibility in designing your DC wiring according to your configuration needs

The modularity of the Stäubli eBOS offerings facilitates modifications during the entire PV system lifecycle in case of extensions or changes to the PV plant.

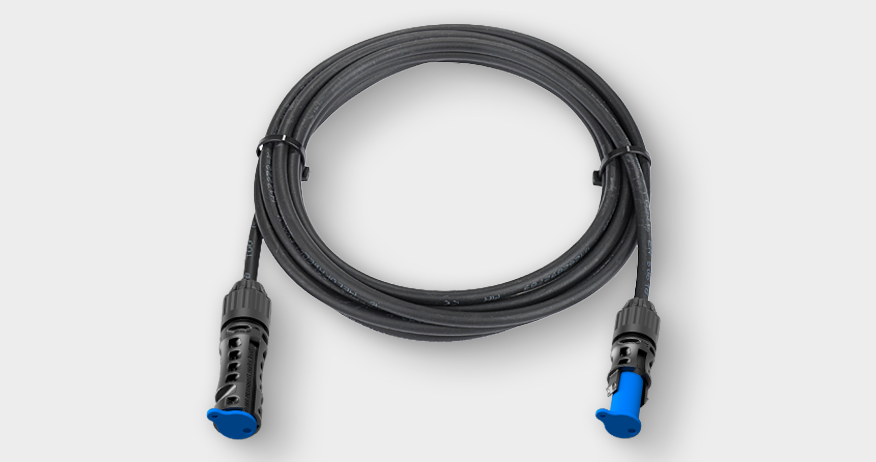

Cable harness

Plug-and-play cable jumper and homerun cable

to connect modules or strings with MC4 or MC4-Evo 2 connectors

Branch connector

Compact and space-saving

to combine two strings to one

In-line fuse

Ready-to-use product, protects PV strings from overcurrent

minimal energy loss
robust housing

Why does it matter?

72% of all issues relate to field-made connectors and wire management in DC Distribution

Connectors and wire management top the list.

The SolarGrade Report published the top 20 most common issue types by volume and severity in PV systems.
PV systems contain more wires and connectors than any other piece of equipment, so these categories are expected to have higher quantities of issues.

How you benefit from our modular wire harness solution?

Expert knowledge

Since 1996, Stäubli’s Original MC4 connectors have powered more than 50% of the global PV capacity worldwide, proving their reliability and industry trust.
Our expertise and experience in DC wiring are fully applied to customers' installations through dedicated customer service and support

Proven reliabilty

Certified product safety meets the relevant industry standards, proven by TÜV Rheinland and/or UL certificates, granting safe and reliable performance.
Best-in-class manufacturing expertise for advanced material processing and the highest insulation performance, granting long product lifetimes and compliance in harsh environments.

Time and cost saving

Optimized design concepts and reduced number of components used, which means less material and lower initial costs (optimized CAPEX).
Simplified system diagnosis process to save time and reduce O&M efforts.

Highest quality to guarantee long-term reliability

Ready-to-use product design and customized cable harnesses can speed up installation time, improve installation quality and reduce potential risks of failure to lower TCO (Total Cost of Ownership).
Replacement parts are available for rapid ordering, thus reducing downtime.

How we make it happen

We support our customers at every stage of the photovoltaic project cycle through a seamless purchasing process.

Stäubli offers high-quality eBOS components for the DC wiring throughout the entire electrical PV supply chain, helping you optimize the DC wiring design in your PV system.

With years of experience in connecting PV systems reliably and safely, our training and consultancy services ensure the best possible outcome for any type of PV system.

Design

At Stäubli, we offer customer wire harness design solutions tailored to each project, ensuring optimal performance and cost efficiency.

Production

Stäubli starts to produce wire harnesses at our factories, helping the customers to select and procure the appropriate wire management devices.

Delivery

Stäubli ensures phased delivery of its modular wire harness system is coordinated with the timeline of the electrical installation.

Installation

We ensure the installation is performed according to the plan and provide thorough documentation to support it.

Education is the cornerstone of expanding knowledge, to ensure quality photovoltaic installations.

Along all project phases, we offer profile-based training courses with certification for all professionals at every stage of their careers. The Stäubli Customer Academy provides online courses, webinars and also in-person training to be booked with our experts.

True PV Safety. Enabled.

Training & Education offerings

Stäubli shares its knowledge on how to improve safety in solar power installations. Updating one's knowledge will improve the safety of PV plants.

learn more

ASK THE EXPERT

Curious to know more?

To find out more about the possibilities of optimized eBOS configurations send us a message and one of our PV experts will get back to you. We look forward to assisting you.

True Value for you

Elaborate engineering know-how, comprehensive manufacturing expertise and agile service attitude for a trustful and successful collaboration as your partner of choice to create long-term value for you.

discover more

The Original MC4

Designed and engineered with Swiss precision craftsmanship, there’s only one original MC4 – and it’s made by Stäubli.

EXPLORE TECHNOLOGY

Value Added Services

Stäubli offers a range of services to lower LCOE of your PV project and maximize the ROI of your solar plant.

EXPLORE OFFERING
