Stericlean robots

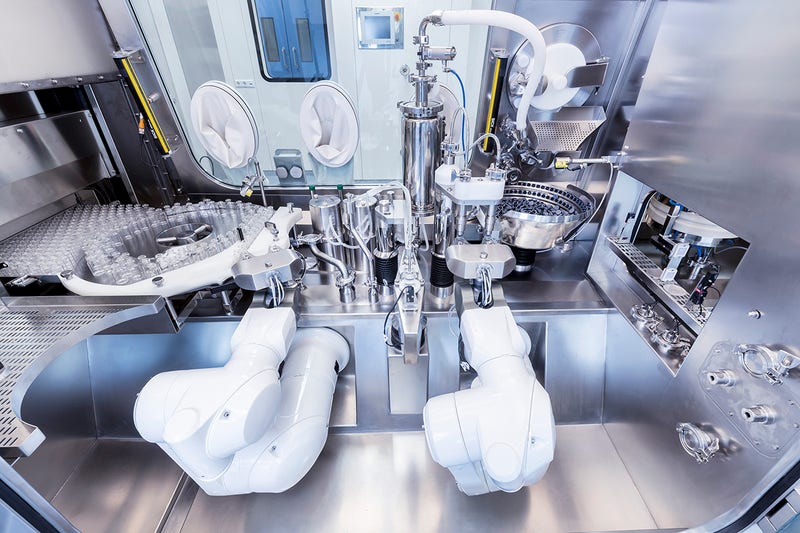

Stericlean is at the forefront of sterilization technology with over three decades serving the life sciences sector. This reliable solution is essential in medical laboratories and industrial sites, as it ensures that areas are free of pathogens. Designed for A/C grade environments, Stericlean excels in sterile loading and unloading processes. Its precision and durable construction make it highly effective, withstanding nine different cleaning agents to maintain impeccable cleanability standards.

Hygienic design

Specific coating that allows H2O2
Smooth surface
Compatible with NSF H1 food oil with no loss in performance
Sensitive parts in stainless steel

Improved tightness and cleanability

Screws in hygienic version
IP65 (IP67 on the wrist)

Smart design

Encapsulated 6-axis arm enabled by hollow shaft drives, no external cables
Vertical connection for integration through the base
Attachement methods: 360° mounting possibility
Patented JCS smart gearbox
Unique and modular SIL3 / PL e safety functionalities

Documentation Package as option

Documentation relating to cleanliness and cleanability

Main applications

Crimping / Assembling

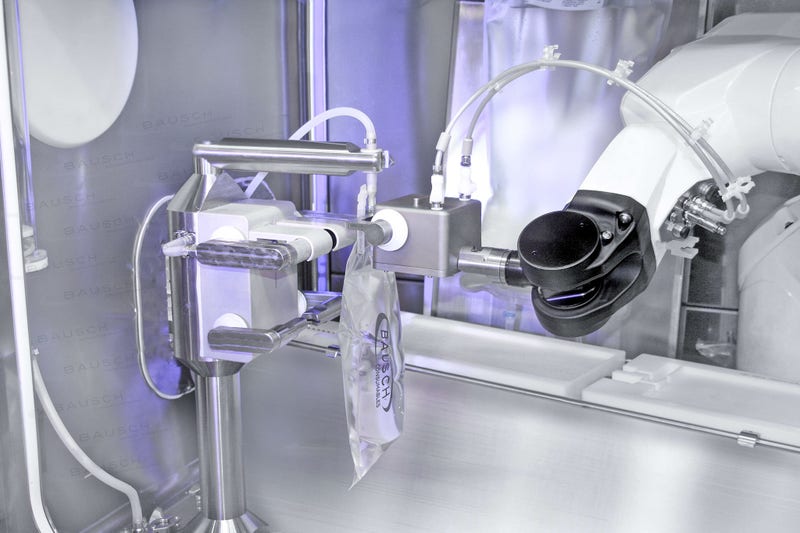

Tube handling
Washing
Loading / Unloading freeze dryer
Loading autoclaves
Akylux box handling
Cell Culturing process management
Cell and Gene Therapy process
Bioprinting

Contact our specialists or get more technical information

MyStäubli Portal

Technical specifications

6 axis robots Stericlean
Model	TX2-40	TX2-60 / 60L	TX2-90 / 90L / 90XL	TX2-140	TX2-160 / 160L	TX2-200 / 200L
Degrees of freedom	6	6	6	6	6	6
Load capacity (kg)	2	4.5 / 3.7	14 / 12 / 7	40	40 / 25	170 / 110
Reach at wrist (mm)	515	670 / 920	1000 / 1200 / 1450	1510	1710 / 2010	2209 / 2609
Repeatability (mm)	±0.02	±0.02 / ±0.03	±0.03 / ±0.035 / ±0.04	±0.05	±0.05	±0.045 / ±0.055
Cleanability:	H202 35%, H202 50%, Isopropyl alcohol (IPA), Diethenyl Ether, Ethanol, Sulfuric Acid, Cyclo-hexane, Formalin, Ammoniac
Cleanroom standard: ISO 14644-1 FS 209E	Class 4 Class 10	Class 4 Class 10	Class 4 Class 10	Class 4 Class 10	Class 4 Class 10	Class 5 Class 100
GMP	Grade A/B	Grade A/B	Grade A/B	Grade A/B	Grade A/B	Grade A/B
Protection class (*wrist)	IP65 (*IP67)	IP65 (*IP67)	IP65 (*IP67)	IP65 (*IP67)	IP65 (*IP67)	IP65 (*IP67)
Attachment methods	360° mounting possibility				Floor / Ceiling	Floor / Ceiling*
Stäubli controller	CS9			CS9 MP		CS9 HP
Available options	Stericlean H₂O₂ harness			/	/	/

*Ceiling consult us

SCARA robots Stericlean
Model	TS2-40	TS2-60	TS2-80	TS2-100
Degrees of freedom	4	4	4	4
Load capacity (kg)	8.4	8.4	8.4	8.4
Reach at wrist (mm)	460	620	800	1000
Repeatability (mm)	±0.01	±0.01	±0.015	±0.02
Stroke (mm)	200 or 400 (option)	200 or 400 (option)	200 or 400 (option)	200 or 400 (option)
Cleanability:	H202 35%
Protection class	IP65	IP65	IP65	IP65
Attachment methods	Floor or ceiling
Stäubli controller	CS9
