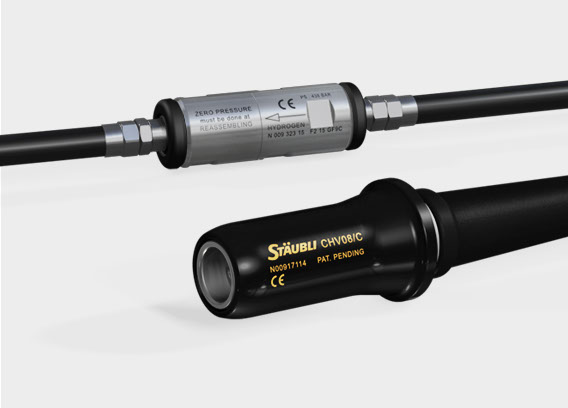

BRH picture

Total protection of refueling line dedicated to hydrogen vehicles with BRH breakaway system

Fitted to the refueling line, the Stäubli BRH breakaway couplings enable automatic circuit shutdown in the event the car starts and the nozzle is still connected, whether the system is pressurized or not. The breakaway safety fittings are also reusable and can safely be reconnected. This solution is designed to be incorporated in environments in accordance with directives 2014/34/EU (ATEX) and is compliant with 2014/68/EU.



APPLICATIONS

Protection of the refueling line for all hydrogen vehicles

Technical specifications
FluidsConstruction

Hydrogen

Stainless steel

ModelBRH04BRH08
Nominal diameter DN (mm)0408
PressureBarPsiBar Psi
Nominal working pressure (NWP)700101533505076
Maximum operating pressure (MOP)87512691437,56345
Component pressure rating (PS)963139674826991
Minimum and maximum allowable temperature (TS)°C°F
-40 and +85°C-40 and +185°F
Cv0,320,98

*depending on the model and operating conditions
