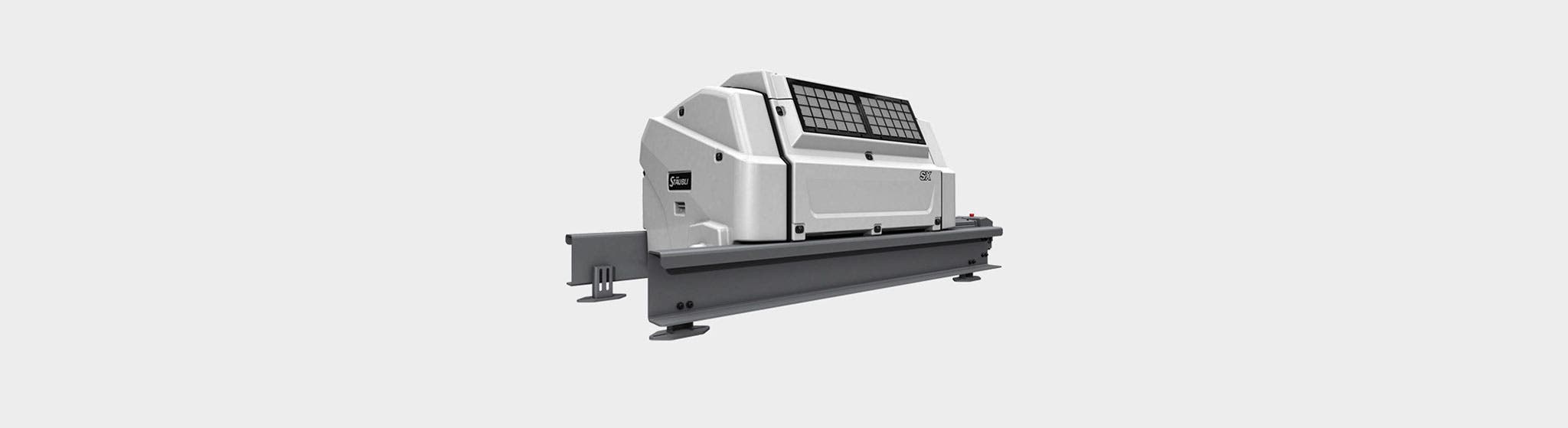

Jacquard machine SX for flat, terry and technical fabrics

Field of application

All types of weaving machine (water jet looms, rapier looms and air jet looms)

Fabric suitability

All flat fabrics, terry cloth and technical fabrics

Formats available

• 1,408 hooks (11 rows of 16 modules)
• 2,688 hooks (21 rows of 16 modules)

Drive system and shedding

• Double-lift open-shed Jacquard machine
• Knife frames with high-precision guidance system
• Precise adjustment of shed geometry

Hook selection

Stäubli MX modules with QUICK LINK connection

Electronic control

Independent Stäubli TC8 control unit, synchronized with the weaving machine
